Materials All high-temperature
steel grades suitable for boiler construction,
including T/P 91, T/P 92, T23/T24 or WB 36
(15NiCuMo) |
|
|
 |
 |
|
| |
Seamless
hot-rolled steel tubes and pipes, made of all
required carbon and alloy steels (up to 13%
Cr), in a complete dimension range from 21
to approx. 1500 mm in diameter and with wall
thicknesses up to 270 mm |
|
|
 |
|
| |
Boiler
tubes for combustion chambers, header pipe
and line pipe for main steam and reheater circuits,
etc.; special products include superheater
tubes, multi-rifled boiler tubes, U-bends and
machined piping components Tube and Pipe for
the chemical and petrochemical industry Line
pipe, furnace tubing, high-pressure tubes for
PE reactors ¡¡ Line pipe
predominantly for the transport of oil, gas and water, offshore and
onshore, with and without coatings and linings |
|
|
 |
|
| |
Standard
dimensions and materials for a great variety
of applications; special products include redraw
hollows, tubes for cylinders and fittings;
TECNIPILE - tubes for foundations |
|
|
 |
|
| |
as
feedstock for the production of machined tubular
parts, mainly for mechanical engineering and
for the vehicle industry MSH - Structural hollow
sections circular, square, rectangular; for
a great variety of applications in mechanical
engineering, vehicle construction and in the
building industry |
|
|
 |
|
| |
manufactured
to customers' requirements from seamless steel
tubes: any size, any shape, any grade |
|
|
 |
|
| |
for
the exploration and production of crude oil
and natural gas, offshore and onshore: casing,
tubing and drill pipe |
|
|
| |
Typical
Power Generation Tube/Pipe Materials and
it's comparision |
|
| |
| |
This
is a selection of typical steel grades; other
grades are available upon request |
|
 |
 |
 |
 |
| Cold-drawn boiler tubes |
Heat exchanger tubes
and feedwater heater tubes |
Custom-bent steel pipe |
Superlong boiler tubes |
 |
 |
 |
|
| Multirifled boiler tubes |
Machined piping products |
Piping components |
|
|
|
 |
|
 |

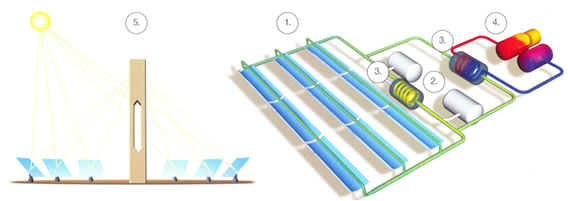

Solar collectors ¨ç
¡¤ Tubes adapted for solar heat capture and fluid transfer in solar field |
Heat storage and release ¨è ¨é
¡¤ Perfectly adapted to different heat transfer fluid as oil, molten salt
and water. |
Precision tubes for Feedwater Heaters ¨ê
¡¤ High resistance to the demanding water-steam heat exchanging environments
(corrosion, high temperatures, high pressure). |
Solar Boiler ¨ë
¡¤ Rifled tubes, optimized profile to raise the thermal efficiency. |
 |
|
¡¤ 100% of the precision tubes for CSP applications are fully tested and
delivered with certificates including chemical composition and mechanical properties. |
|
¡¤ 100% of the precision tubes for CSP applications are manufactured in plants
certified ISO 16949, ISO 9001 and ISO 14001. |
|
¡¤ More than 40 years of experience and cooperation working with the main
actors of the Power Generation Industry worldwide guarantee a unique large know-how in
precision tube manufacturing for the energy sector. |
|
|
|
 |
| Product range and steel grade |
|
| |
| Complete product range |
| Length |
Maximum Length of 26.5 meters/85¡¯11¡± |
| Type of tubes |
Welded, Seamless and Rifled Tubes |
| Bending |
Straight and U-bent tubes |
| Type of steel |
Carbon steel and alloy steel |
| OD |
Min 15.87mm (5/8¡±) / Max 63.5mm (2.5¡±) |
| WT |
Min 1.5mm / Max 4mm |
|
| |
| Main Steel grades |
| Temperature/Grade |
Low Temperature |
Medium Temperature |
High Temperature |
ASTM
A179, A192,
A209, A213,
A334, A210,
A556
|
Gr 1
Gr 6
Gr 3
|
Gr A1
Gr A179
Gr A192
Gr C
|
T1 T1A
T12 T11
T5 T22
|
|
|
|
| |
